NexusDB

Since we're just in the progress of getting V3 finished to Gold status, we've been looking into tweaking the engine. In this process we were wondering how V3 actually measures up to older versions of NexusDB. We've also included NexusDB V2.08, which is imminent at the time of writing this.

As representative mix of data we simply chose the current core SQL tests. These are the tests that are run after every single fix/change to the SQL engine as well as automated every night. All tests are run on Delphi 2007, with NexusDB V3 also run on Delphi 2009. This core suite consists of 184 tests which have a run time from less than 5ms up to 65 seconds (set as timeout). The queries cover the whole range from simple queries, to aggregates, to inner/outer joins, inserts, updates and triggers. 50 of these queries have a run time above 50ms in NexusDB V3 on D2009, and after trending all the data we can confirm that these 50 are representative for the whole suite.

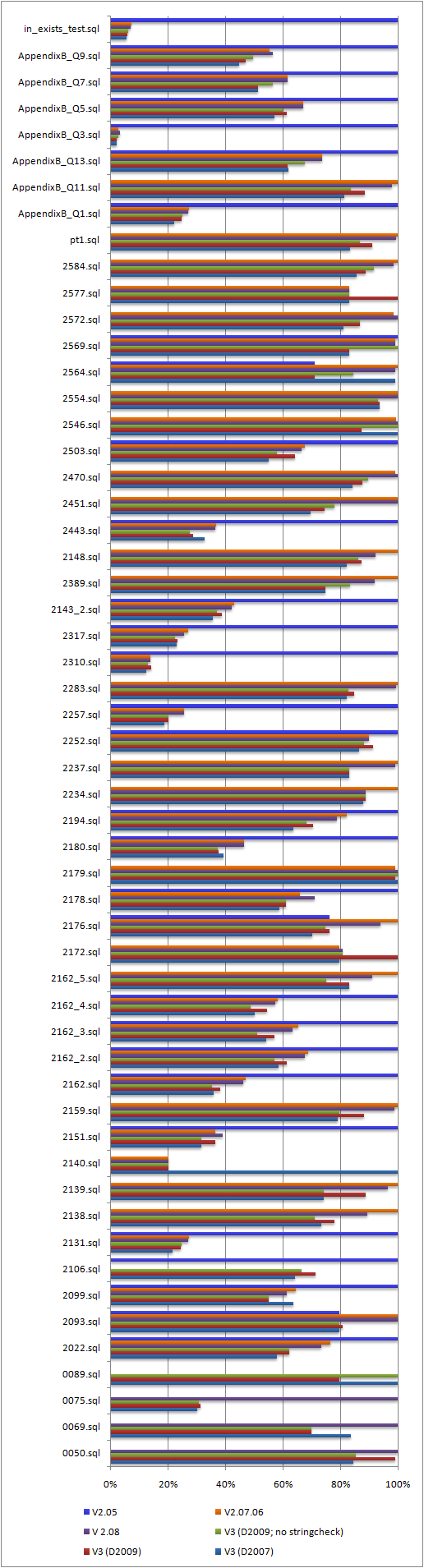

The following chart shows the run time of these queries normalized to the longest running time as 100% - thus the shorter the bar, the better :)

If you want to see the table with the timings in ms then please scroll further down.

If you don't see a bar on the graph for a version (or a -1 in the table) then this means that either the returned result was wrong, the query produced a parser or runtime error or the query timed out.

Of course we're trying to hunt down the few cases where any V2 outperforms V3 and fix that up before release, after all we want V3 to be the best we have in all areas.

Looking at the chart, overall I think I can say to the team: "We've done good boys!"



And here's the base data for the chart, a green background indicating that this is the fastest run time:

SQL	V3 (D2007)	V3 (D2009)	V3 (D2009) no stringcheck	V 2.08	V2.07.06	V2.05
0050.sql	93	109	94	110	-1	-1
0069.sql	561	468	468	670	-1	-1
0075.sql	967	999	983	3192	-1	-1
0089.sql	78	62	78	-1	-1	-1
2022.sql	1030	1108	1108	1304	1357	1778
2093.sql	62	63	62	78	78	62
2099.sql	109	94	94	105	110	171
2106.sql	1825	2028	1887	-1	-1	2839
2131.sql	2262	2559	2590	2808	2840	10405
2138.sql	4899	5195	4742	5959	6677	-1
2139.sql	45428	54273	45318	58953	61168	-1
2140.sql	234	47	47	47	47	-1
2151.sql	203	234	203	249	234	640
2159.sql	4555	5070	4586	5688	5756	-1
2162.sql	4883	5226	4836	6302	6411	13635
2162_2.sql	4414	4633	4321	5117	5211	7567
2162_3.sql	4508	4758	4258	5273	5445	8330
2162_4.sql	2559	2777	2481	2924	2964	5101
2162_5.sql	156	156	141	171	188	-1
2172.sql	62	78	63	63	62	-1
2176.sql	1825	1981	1950	2449	2605	1982
2178.sql	375	390	390	453	421	639
2179.sql	94	93	94	94	93	-1
2180.sql	343	328	327	406	406	874
2194.sql	1280	1420	1373	1585	1653	2012
2234.sql	124	125	125	125	141	-1
2237.sql	78	78	78	93	94	-1
2252.sql	827	874	843	858	858	956
2257.sql	218	234	234	296	296	1155
2283.sql	18221	18814	18361	21997	22168	-1
2310.sql	671	764	702	749	749	5335
2317.sql	452	453	437	499	530	1950
2143_2.sql	3261	3541	3401	3853	3931	9157
2389.sql	140	140	156	172	187	-1
2148.sql	15600	16583	16365	17492	18985	-1
2443.sql	515	452	437	577	578	1576
2451.sql	936	999	1045	1342	1341	-1
2470.sql	7800	8097	8299	9254	9173	-1
2503.sql	19282	22495	20296	23275	23696	35054
2546.sql	125	109	125	125	124	-1
2554.sql	219	219	218	234	234	-1
2564.sql	109	78	93	109	110	78
2569.sql	78	78	94	93	93	94
2572.sql	436	468	468	539	531	-1
2577.sql	78	94	78	78	78	-1
2584.sql	4898	5086	5241	5631	5725	-1
pt1.sql	3338	3650	3479	3981	4009	-1
AppendixB_Q1.sql	2324	2574	2605	2839	2855	10452
AppendixB_Q11.sql	1763	1919	1810	2121	2168	-1
AppendixB_Q13.sql	328	327	359	390	390	530
AppendixB_Q3.sql	63	62	78	94	78	2761
AppendixB_Q5.sql	624	671	655	733	733	1092
AppendixB_Q7.sql	624	624	686	748	749	1216
AppendixB_Q9.sql	593	624	656	749	733	1326
in_exists_test.sql	1701	1826	1856	2122	2200	30249
